Description:

For shell protection grade IEC (IP code, strengthen test) of electric products inspection, in accordance with the DIN40050 standard related rules system. To provide auto parts, electrical and electronic industry, waterproof test design simulation of natural environment and human factors of the machine, our company also have conforms to the world of different specification of models available for customers to choose.

Specifications:

1. Product name:CX-IPX9K

2. Model:DIN40050-9 ISO20653

3. The test range:800x800x800(WxHxD)mm

4. The test space:0°,30°,60°,90°(Four locations)

5. The number of the spray hole:4pcs

6. High temperature water tank temperature can reach 85℃

7. The sample table speed:5±1r.p.m

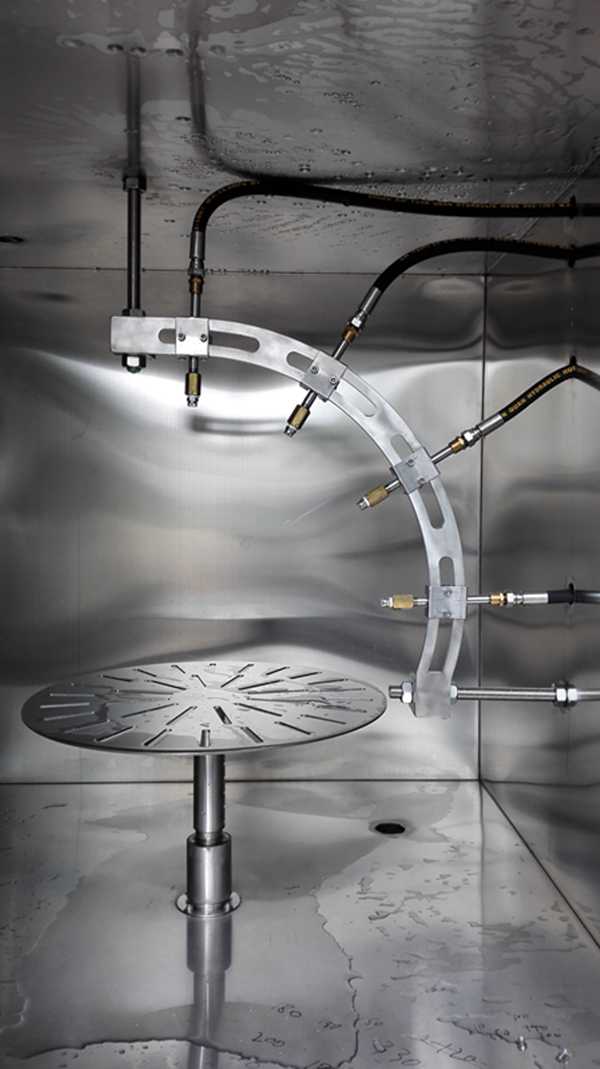

8. Nozzle at 0 °, 30 °, 60 °, 90 ° water spray, and the measured object distance of 100-150mm, each position for 30 seconds.

9. Flow rate is 14-16L/min, the water pressure is 8000-10000k(81.5-101.9kg/c㎡)

Material structure:

Shell and inner box are all made of SUS304 stainless steel materials, test chamber upside for laboratory and control panel, bottom water pump installation (Italian high-pressure pump) and electromagnetic valve (imported from Italy), constant temperature and backwater double water tank (SUS304 stainless steel), turntable motor (panasonic motor) and slow transmission mechanism.
