IEC60529 IPX1-6 Waterproof Degrees Test Equipment Ingress Protection Test Chamber

Product Introduction

IPX1/2, IPX3/4 ,IP5/6 waterproof degrees test equipment are designed and manufactured according to IEC 60529 < Degrees of protection provided by enclosures (IP Code)>. This equipment is applied in IPX1, IPX2, IPX3 ,IPX4,IPX5 ,IPX6 waterproof degrees testing purposes, which are widely adopted by luminaire products, electrical and electronic products certification institutions, testing organizations and production enterprises for quality control.

Application

This equipment is suitable for the test of electrical products which are enclosure and sealed in the rain environment whether can ensure the good performance of equipment and components. The scientific design of this equipment, so that the equipment can be realistically simulated dripping water, water spraying, splashing water etc. The application of the comprehensive control system and the frequency conversion technology makes the rotation angle of the test sample rack. The swing angle of the pendulum rod and the swing frequency of the spray water can be adjusted automatically.

Technical parameters

Model:KP-IPX1-6

IPX1/2

IPX3/4

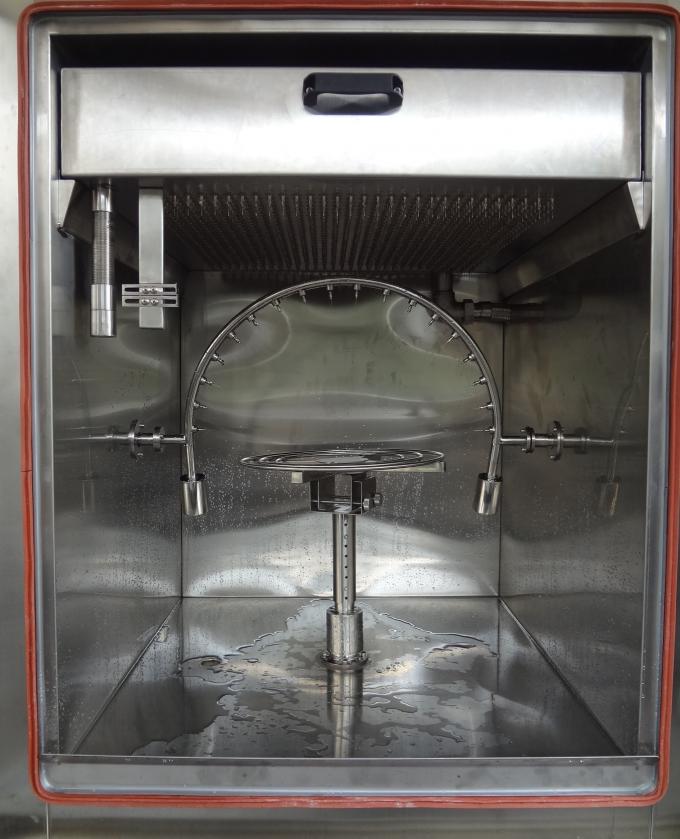

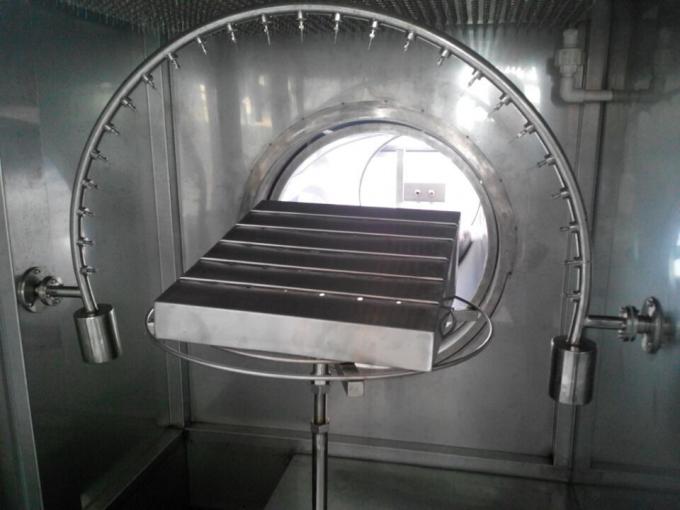

1 Oscillating tubes :R400

2 Oscillate angle: 120o (IPX3), 350o (IPX4) or user-defined ( Adjustable angle)

3 Inner diameter of oscillating tube (mm) : 15

4 Hole Pitch : 50 mm

5 Diameter of blowhole: 0.4 mm

6 Water flow rate per hole : 0.07 L/ min ( Adjustable)

7 Height of turntable: 200-700 mm (Adjustable)

8 Product under test (max): 0-50 kg(can customize)

9 Material of tube: SUS304 stainless steel (Preferred)

10 Duration of test : 0~9999min

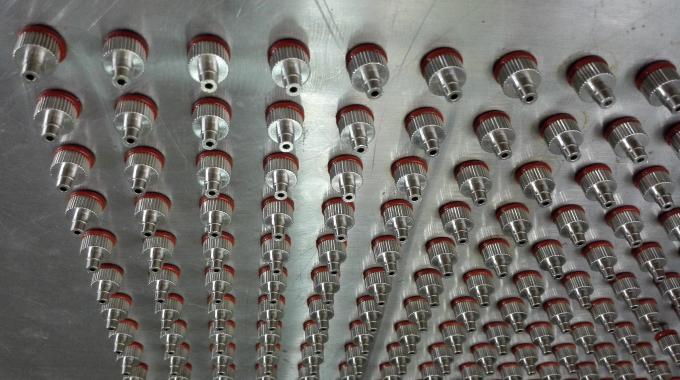

11. The drip hole has a protective plate to prevent accidental injury to the operator.

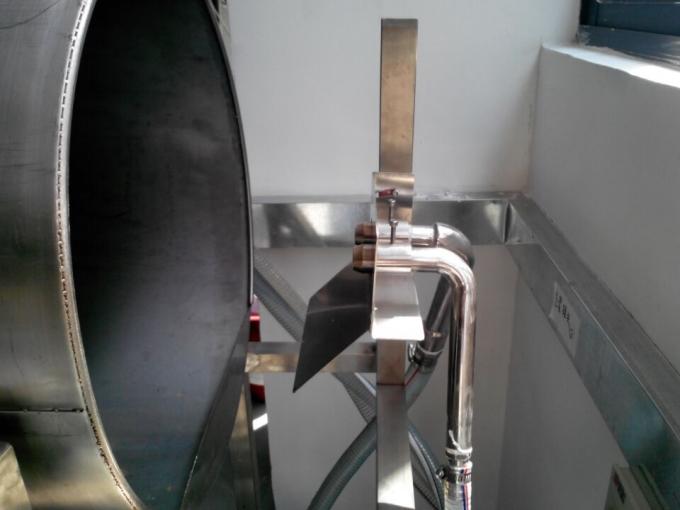

IPX5/6
