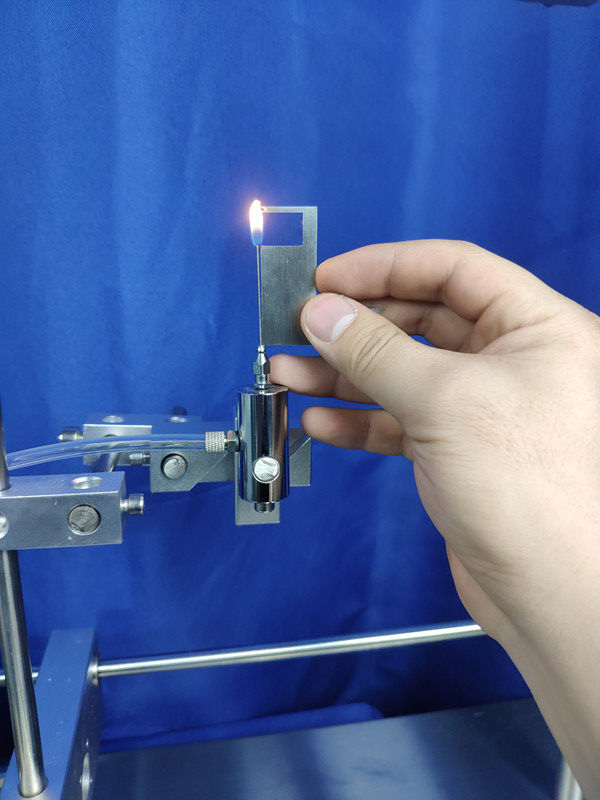

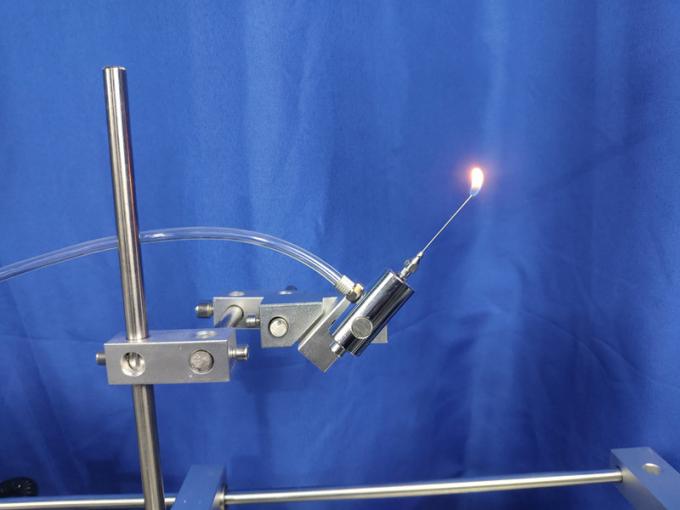

IEC60695-11-5 Needle Flame Tester

日期：2025-06-06 02:01

浏览次数：192

摘要：IEC60695-11-5 Needle Flame Tester，According to IEC60695-2-2 and IEC60695-11-5 Needle Flame Tester is applied in the production and quality control department of lighting instrument, hypopiesis electrical apparatus, domestic appliance, machine electric appliance, electrical machine, power tool, electronic instrument, electrician instrument and technical equipment. Also, it is suitable for the industry of insulation material, engineering plastics and solid combustible material.

Product Description

According to IEC60695-2-2 and IEC60695-11-5 Needle Flame Tester is applied in the production and quality control department of lighting instrument, hypopiesis electrical apparatus, domestic appliance, machine electric appliance, electrical machine, power tool, electronic instrument, electrician instrument and technical equipment. Also, it is suitable for the industry of insulation material, engineering plastics and solid combustible material.

Technical Parameters

	Technical Parameters
Burner Angel	0°, 20°,45°
Flame Height	12±1mm
Needle burner	Height above 35mm, Stainless steel needle Φ0.9mm-Φ0.5mm
Standard Copper Block	0.58±0.01g
Check time	23.5±1S
Temperature Test	MAX1050°C ±0.1%
Thermocouple	RS (British), Type KΦ0.5, accuracy ±0.05%
Gas variety	Butane or purity above 95%,Propane

IEC60695-11-5 Table Type Needle Flame Tester For Assessing The Internal Fault Conditions Caused By Small Flame 0

IEC60695-11-5 Table Type Needle Flame Tester For Assessing The Internal Fault Conditions Caused By Small Flame 1
